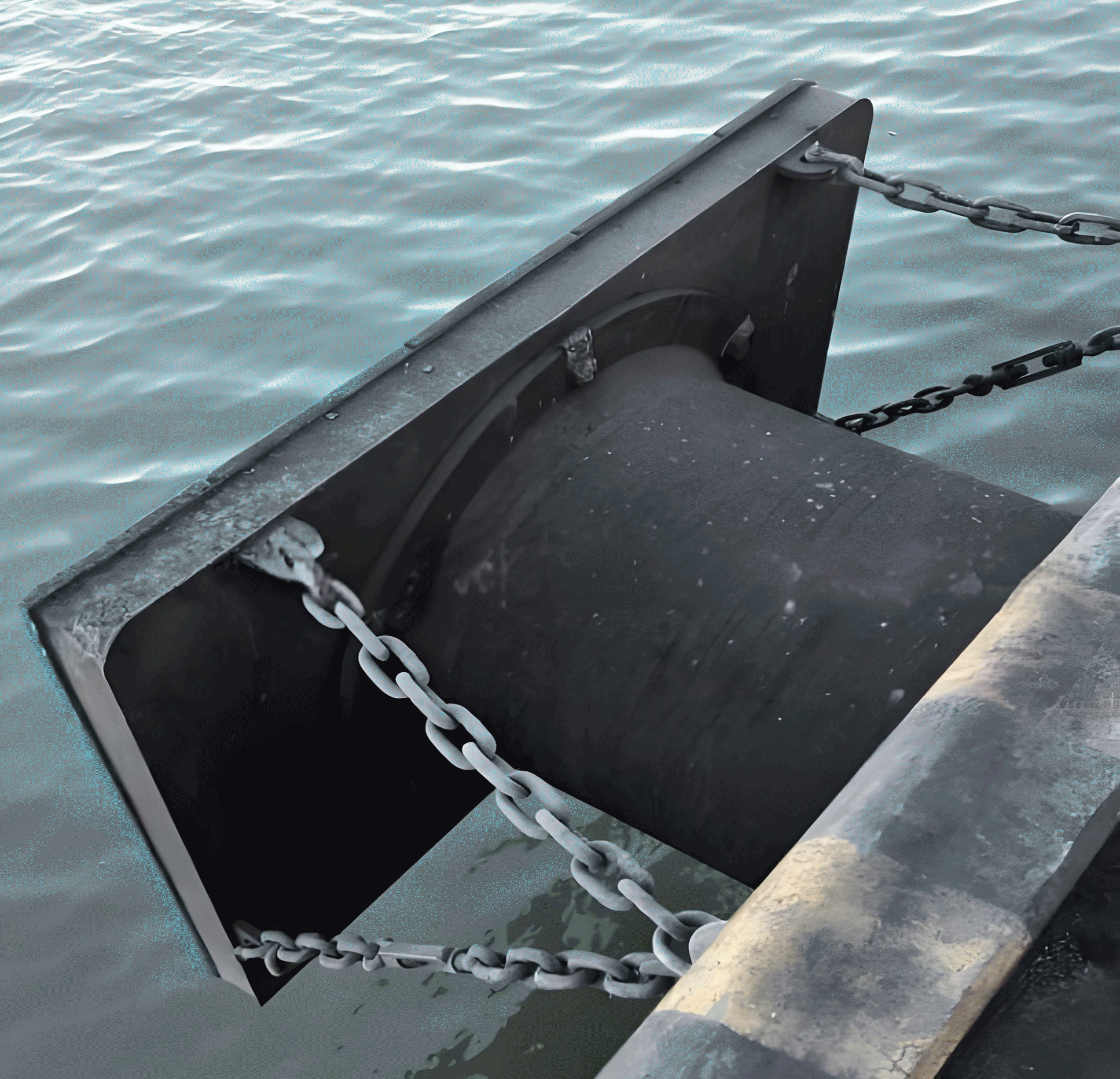

Drum solid rubber fender is a mature rubber fender type with hollow cylinders and mounting flanges fully embedded in rubber. It is designed to deflect up to 52.5% in the axis (design deflection). Drum solid rubber fenders have a long track record and remain popular because of their ease of operation, high performance and strength. Drum solid rubber fenders are available in a variety of standard sizes and are interchangeable with many older Marine fenders. The height is between 400 and 3,000 mm.
PRODUCT DETAILS
Easy to assemble and install.
High energy absorption, low reaction force.
The front panel can reduce the surface pressure on the ship, and the surface pressure can be controlled below 200KN/㎡, which is suitable for large ships to berthing.
The UHMW-PE pad is fixed to the front panel to reduce the coefficient of friction between the ship and the fender system, effectively extending the service life of the fender system by reducing the shear force.
Solid drum rubber fender has excellent multi-directional angular performance.
Economical and efficient: Large footprint allows for good load distribution on the front panel, resulting in a lighter panel structure.
ADVANTAGES AND PERFORMANCE OF DRUM SOLID RUBBER FENDER
Note:
(1) Negotiation of other performance specifications between the supply and demand parties;
(2) R-reaction force (KN), E-absorption energy (KN-M);
(3)RE- extremely high reaction type, RS- ultra-high reaction type, RH- high reaction type, RO- standard
Reaction type, RL- low reaction type;
4) Performance tolerance :10%.
