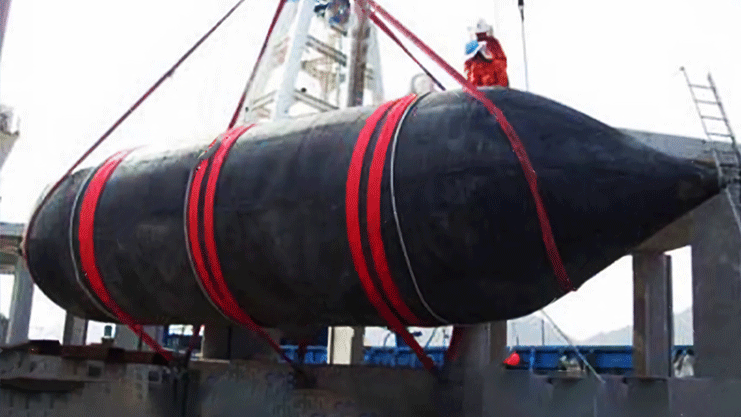

Salvage Airbag
Floating salvage airbags are widely used in the Marine industry for salvage and buoyancy assistance, including the rescue of standard ships or sunken ships. Maritime salvage and rescue projects are unexpected, time-efficient, lifting equipment and high cost; If the salvage company adopts conventional lifting methods, it is usually affected by large lifting equipment or high cost. The use of salvage airbags is a faster and more flexible way to carry out salvage and rescue work.

PRODUCT DETAILS



Large tonnage: up to 100m deep. Can provide 50 tons, 100 tons, 200 tons, 300 tons and other standard large tonnage. Can also be customized according to customer needs.

High safety: 1400-D3 high strength nylon wire, with strong puncture resistance and wear resistance. The bursting pressure is more than 3 times the safety factor, and the safety is high.

Safety valve technology: The use of safety valve technology to prevent overpressure, especially when fishing, effectively alleviate the relative pressure change when the buoy floats from the bottom.

Simple and reliable operation: the salvage airbag adopts mesh sleeve fixing technology - a patented technology independently invented by Rsea. Network lock sleeve and shackle link are adopted to effectively solve the problem of force transmission and prevent the float from slipping. The construction operation is simple and convenient.

Installation: The floating air bag is easy to fix and can provide a lot of buoyancy after inflation.

Salvage airbag: The Shandong Rsea salvage airbag can be used for underwater aircraft recovery, ships and other underwater objects salvage activities.

Ship floating tool: The Shandong Rsea salvage bag is used as a buoyancy auxiliary tool for the ship to float on the dry dock and set sail in shallow water channels.

Pipeline and cable laying: The Shandong Rsea salvage air bag can be used for a variety of pipeline laying and cable installation, such as offshore oil and gas, telecommunications cables, etc.

Flotation AIDS: Used for other flotation equipment, such as power plant equipment, box culvert installation, floating air bag bridge construction, etc.


SIZE AND PARAMETERS OF SALVAGE AIRBAG


Model numberTonnageDiameter (m)Total length (m)Safety valveAir tapWeight (kg) /7psiWeight (kg) /14.5psiLifting point
SP-551.25.5Yes1in1201703
SP-10101.57Yes1in1 702405
SP-15151.87Yes1in2003505
SP-202028Yes1in2404406
SP-25252.28Yes1in2604806
SP-30302.58Yes1.5in5507906
SP-50502.512Yes1.5in78011808
SP-7575312.5Yes1.5in110015208
SP-100100316Yes1. 5in1 40019008
SP-1251253.515Yes1.5in1 50021508
SP-1500.153.517.5Yes1.5in220031008
SP-1751753.520Yes1.5in2450355010
SP-2002003.523Yes1.5in2800420010
