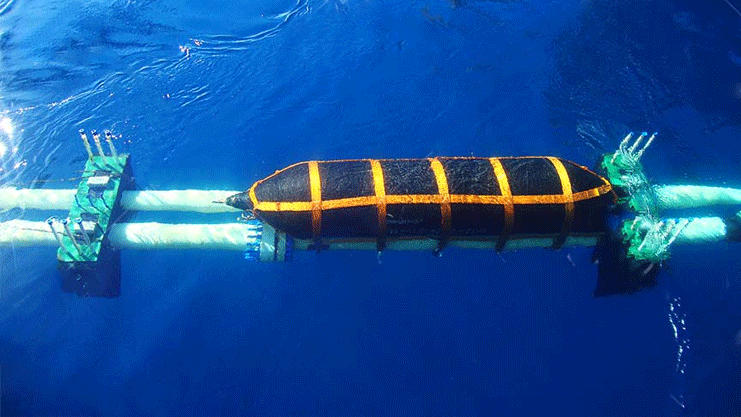

Buoyancy lifting capacity: 1~200 tons. Suitable for deep water salvage activities. Good puncture resistance and wear resistance and good air tightness. The unique nylon wrapped mesh is used to prevent the pontoon from slipping off and to recover the pontoon during offshore applications. Durable, versatile and easy to use. | ISO9001:2008 Passed BV certification. 6:1 safe working ratio Equipped with all the necessary hardware and ready for immediate application. Pressure relief valve at both ends to avoid overpressure. Each buoy is tested before shipment. |
DIMENSIONS AND PARAMETERS OF BUOYANCY AID AIRBAG
Spec | Maximum buoyancy (T) | Airbag parameter diameter (M)/ Effective length (M) |
0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 |
F1 | 1T | 4 | 2 |
|
|
|
|
|
F2 | 2T | 7 | 4 | 3 |
|
|
|
|
F3 | 3T | 11 | 6 | 4 | 3 |
|
|
|
F5 | 5T |
| 10 | 6 | 4 |
|
|
|
F7.5 | 7. 5T |
| 15 | 10 | 7 | 4 |
|
|
F10 | 10T |
|
| 13 | 9 | 6 |
|
|
F12.5 | 12. 5T |
|
| 16 | 11 | 7 | 5 |
|
F15 | 15T |
|
| 19 | 14 | 8 | 6 |
|
F17.5 | 17.5T |
|
|
| 17 | 10 | 7 | 6 |
F20 | 20T |
|
|
|
| 11 | 8 | 6 |
F25 | 25T |
|
|
|
| 14 | 10 | 8 |
F30 | 30T |
|
|
|
| 17 | 12 | 10 |
F35 | 35T |
|
|
|
|
| 14 | 11 |
F40 | 40T |
|
|
|
|
| 16 | 13 |
F45 | 45T |
|
|
|
|
|
| 14 |
F50 | 50T |
|
|
|
|
|
| 16 |
