Jacking bag

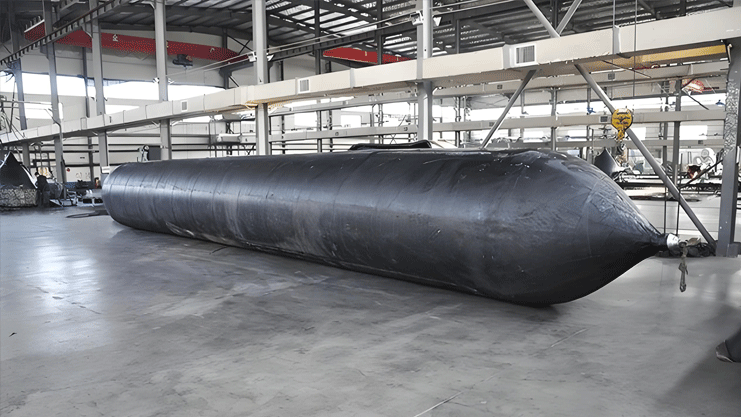

Jacking air bag refers to a way used for lifting heavy objects. It is the principle of inflating and expanding the air bag to lift the object. These jacking airbags are made of synthetic tire cord reinforcement and have a strong bearing capacity.
The jacking air bag adopts high quality rubber and advanced manufacturing process to ensure the working pressure can reach 1.2Mpa. This ultra-high pressure air bag can be used to lift caissons or large heavy structures. Compared with traditional jacks, lifting airbags have many advantages.

PRODUCT DETAILS



NASIC STRUCTURE OF HEAVY LIFTING AIRBAG



1: Air sac body2: Airbag cone head3: air bag inflating end
4: airbag sealing endD: Balloon diameterLOA: effective length of airbag
L: Total length of airbag



1. Reducer connector 2"x1"(stainless steel 304)6. Quick connector (female) G1"
2. Pressure gauge M14x1.57. Hose connector
3. Tee (stainless steel 304)7-1 rubber seal ring, 7-2 connector pipe, 7-3 nut
4. Ball valve G1"(Extra Strength)8. Hoops
5. Quick connector (male), G1"(9). Rubber hose



Decomposition diagram of the inflatable end of the transport airbagTransport airbag seal end decomposition diagram
(1) Air bag mouth (stainless steel 304)(1-1) Air intake body, (1-2) lock nut, (1-3) wrist rest
① Reducing joint 2"x1"(stainless steel 304)② Pressure gauge M14x1.5
③ Tee joint (stainless steel 304)④ Ball valve G1"(Extra Strength)
⑤ Quick connector (male head), G1"⑥ Quick connector (female head), G1"
7 Hose connector, including 7-1 rubber seal ring, 7-2 connector pipe, 7-3 nut
⑧ Drag ring (stainless steel 304)



Transport airbag inflating parts (inflating end)Airbag moving parts (trailing)
No.attachmentSpecificationQuantity
1Reducing joint2x12Supply in quantity
2Pressure gauge
1Supply in quantity
3Tee joint
1Supply in quantity
4Ball valveG1"1Supply in quantity
5Quick connector (male)G1"1Supply in quantity
6Towing ring1"1
Each order
7Quick connectorG1"2Each order
8Hose connectionG1"2Each order
9hoop
4Each order


BENEFITS AND PERFORMANCE OF HEAVY LIFTING AIRBAGS


ADVANTAGE
Carrying capacityBurst pressureSafety elementAir tightness
Capacity per meter exceeding ISO17357 requirementsBursting pressure performance exceeds ISO17357 requirementsRsea safety factor standard exceeds ISO17357 requirements24 hours air tightness test, pressure loss less than 3%
Rsea original ultra-high pressure air bag (unique)No deterioration or change in performance
Natural rubber material - high strength and stabilityCost competitive system
High strength D3 synthetic tire cordEasy to install and low cost
Every airbag has a traceable IDLow maintenance cost
6S standard production process controlLow transportation cost
More than 38 production processesEasy to install and low cost
More than 13 quality control processesProvide complete airbag application solutions
Customize airbags of any sizeSafe and reliable


SeriesModel numberDiameter (m)Working pressureWorking height (m)Unit bearing capacity (ton/m)
0.4D0.5D0.6D0.4D0.5D0.6D
L1 seriesL100.30.120.120.150.183.52.92.3
0.50.10.20.250.34.843.2
0.80.090.320.40.486.85.74.5
L110.30.170.120.150.185.44.53.6
0.50.160.20.250.37.46.24.9
0.80.140.320.40.4810.28.56.8
10.10.40.50.69.57.96.4
L2 seriesL200.60.410.240.30.3622.919.115.3
0.80.340.320.40.4825.421.217
10.280.40.50.626.522.117.7
1.50.230.60.750.931.826.521.2
20.180.811.233.928.322.6
L210.60.390.240.30.3622.318.514.8
0.80.330.320.40.4824.620.516.4
10.260.40.50.624.420.316.2
1.50.210.60.750.930.225.220.1
20.190.811.2363024
2.50.1611.251.537.130.924.7
L2 seriesL3010.630.40.50.659.349.539.6
1.20.530.480.60.7259.349.539.6
1.50.420.60.750.959.349.539.6
1.80.350.720.91.0858.549.739
20.320.811.259.349.539.6
2.50.2611.251.560.15040
